SCR

The following PDFs are available for download in this category:

Solid State Module Spec Sheet

View as Grid List
Sort by
20 Display per page
DSC-140 (120 VAC) Digital Power Regulator (1-Pole)..Rated Current: 10 A max. (Semi-Conductor Internal Fuse); Single Current Duration: 1500A 1 cycle of power frequency; Main Power Supply: 120 VAC ± 10%; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms... $128.00
DSC-240 (240 VAC) Digital Power Regulator (1-Pole)..Rated Current: 32 A max. (Semi-Conductor Internal Fuse); Single Current Duration: 1500A 1 cycle of power frequency; Main Power Supply: 180-440 VAC ± 10%; Operating Voltage: 240 VAC; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10... $129.00
DSC-440H (480 VAC) Digital Power Regulator (1-Pole)..Rated Current: 32 A max. (Semi-Conductor Internal Fuse); Single Current Duration: 1500A 1 cycle of power frequency; Main Power Supply: 200-480 VAC ± 10%; Operating Voltage: 440 VAC; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10... $140.40
EPS1-100-H(480VAC) Digital Power Regulator (1-Pole)..Rated Current: 100 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Temp... $269.00
EPS1-125 180-440 VAC Digital Power Regulator (1-Pole)..Rated Current: 125 A max...Main Power Supply: 180-440 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Temp... $440.00
EPS1-40 (180-440 VAC) Digital Power Regulator (1-Pole)..Rated Current: 40 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: -... $135.00
EPS1-40 100-130 VAC Digital Power Regulator (1-Pole)..Rated Current: 40 A max...Main Power Supply: 100-130 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $135.00
EPS1-40-H(480VAC) Digital Power Regulator (1-Pole)..Rated Current: 40 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $135.00
EPS1-60-H(480VAC) Digital Power Regulator (1-Pole)..Rated Current: 60 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $155.00
EPS1-80-H(480VAC) Digital Power Regulator (1-Pole)..Rated Current: 80 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $199.00
EPS2-100 180-440 VAC Digital Power Regulator (2-Pole)..Rated Current: 100 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: ... $360.00
EPS2-100-H(480VAC) Digital Power Regulator (2-Pole)..Rated Current: 100 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Temp... $360.00

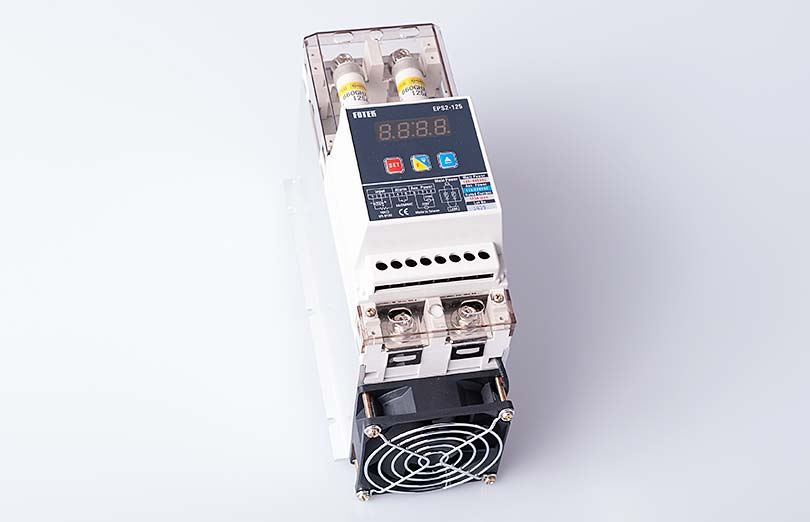

EPS2-125 180-440 VAC Digital Power Regulator (2-Pole)..Rated Current: 125 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: ... $480.00
EPS2-125-H (480 VAC) Digital Power Regulator (2-Pole)..Rated Current: 125 A max...Main Power Supply: 280-550 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: ... $480.00
EPS2-40 180-440 VAC Digital Power Regulator (2-Pole)..Rated Current: 40 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: -... $199.00
EPS2-40-H(480VAC) Digital Power Regulator (2-Pole)..Rated Current: 40 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $199.00
EPS2-60 180-440 VAC Digital Power Regulator (2-Pole)..Rated Current: 60 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: -... $229.00
EPS2-60-H (600 VAC) Digital Power Regulator (2-Pole)..Rated Current: 60 A max...Main Power Supply: 600 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Temperatu... $229.00
EPS2-60-H(480VAC) Digital Power Regulator (2-Pole)..Rated Current: 60 A max...Main Power Supply: 280-550 VAC..Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired or Zero Crossover Switching Field Selectable; Operating Tempe... $229.00
EPS2-80 180-440 VAC Digital Power Regulator (2-Pole)..Rated Current: 80 A max...Main Power Supply: 180-440 VAC 50/60 Hz; Input: 4-20 mA, 0-20 mA, 1-5 V, 2-10 V, 0-5 V, 0-10 V, or VR-10kOhms Field Selectable; Phase Fired Switching Field Selectable; Operating Temperature: -... $295.00
